Maintenance Log

Sep 14, 2023

todo | done | maintenance | reference | end goal | build thread | build sheet

Oil Changes

DateMileageOilFilterMilesMonthsNotes
2021-10-04133,428Conv 5w30 STP high mileageMopar M0-090
2023-02-25137,175Conv 5w30 STP high mileageMopar M0-0903,74716 mo

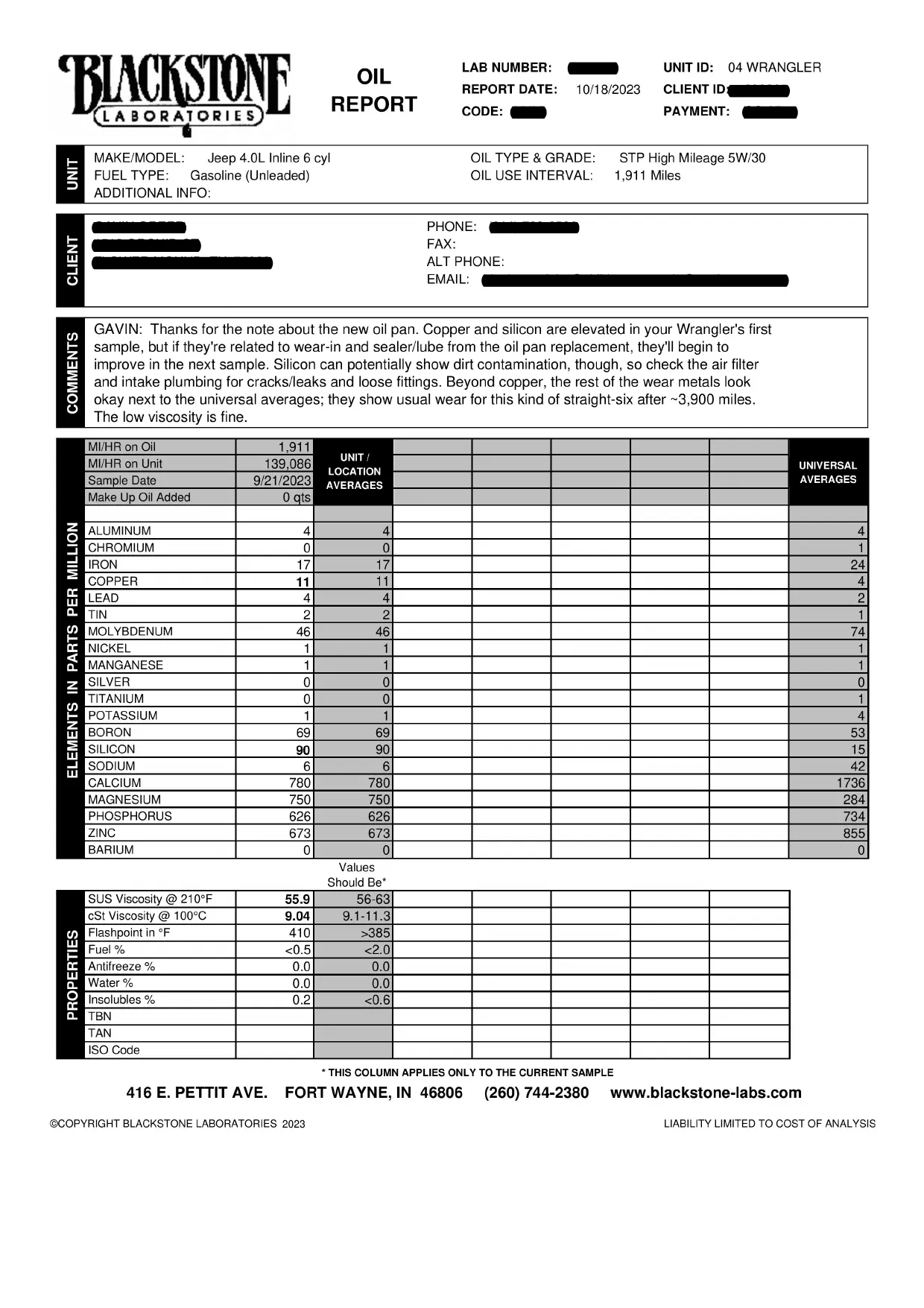

2023-09-22139,086Conv 5w30 STP high mileageSTP S161,9117 molifter tick

Parts on hand

PartBrand/No.Retailer
RadiatorCSF 3244Amazon
Water Pump Inlet TubeDorman 56398Amazon
Rear Main SealFel-Pro BS 40183
Skid NutsertsBMBBMB
fan clutchUSMWHome Depot

JJ Service record

DateMileageJointLubeNotes
2022-10-08136,400miFront LCARedline CV-2
2022-10-08136,400miRear LCARedline CV-2
2022-10-15136,500miFront UCARedline CV-2
2023-04-29137,925miRear UCARedline CV-2
2023-10-07139,282miRear LCARedline CV-2

Driveshaft Service Record

DateMileageShaftTaskNotes
2022-09-06136,002frontrebuild front driveshaftall joints and centering ball, parts from denny’s driveshaft
2023-07-17137,280frontreplace axel end jointSpicer 5-793x from amazon

Diff service

DateMileageDiffTaskNotes
2021-11-22Rearinspect, change fluid, install lubelocker, fix air connectorValvoline / SynPower 75W-140 Full Synthetic Gear Oil
2022-10-01Frontinspect, change fluid, install lubelockerValvoline / SynPower 75W-140 Full Synthetic Gear Oil

Fluid Service

DateMileagefluidproduct
2021-11-12133,650tcase fluidCastrol Transmission Fluid
2021-11-12133,650transmission fluid

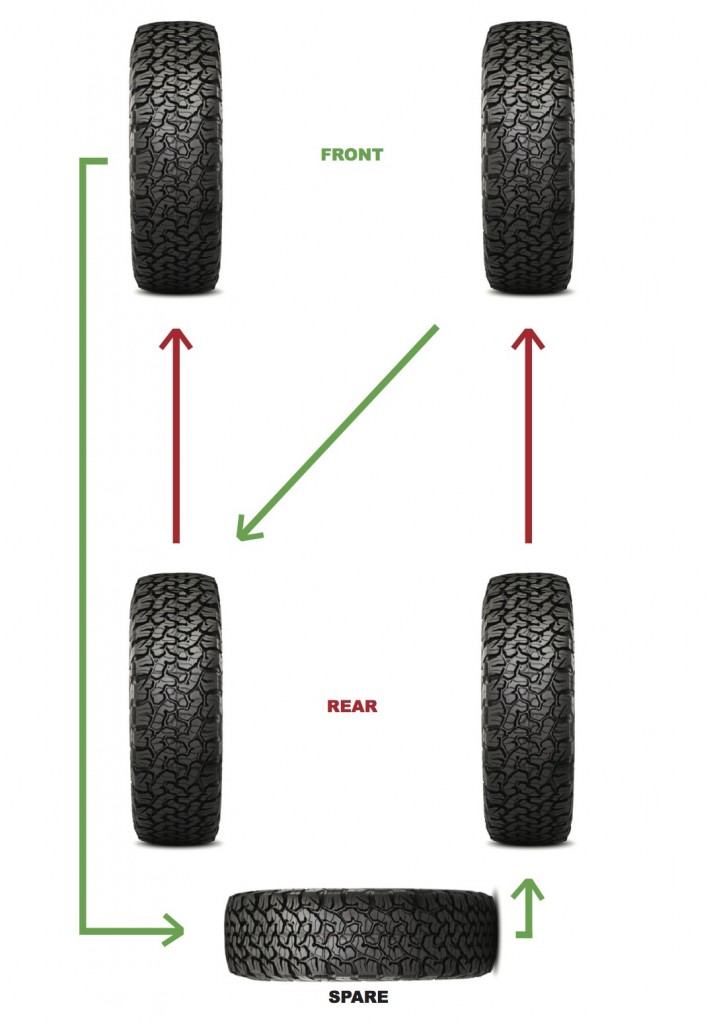

Tire Rotation

Cooper Evolution M/T 285/75r16

DateMilageTaskNotes
2022-02-09134,500Original InstallDiscount Tire
2023-06-07138,182Rotation5-tire, at home
2023-02-26140,818Rotation5-tire, at home

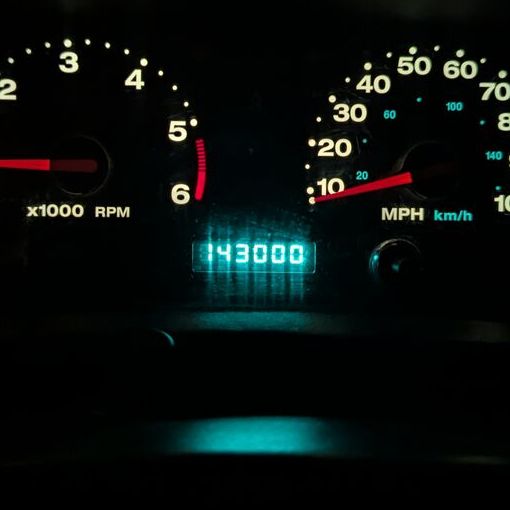

143,000

Mileage

Mileagedate
133,300mi2021-09-30
133,333mi2021-10-02

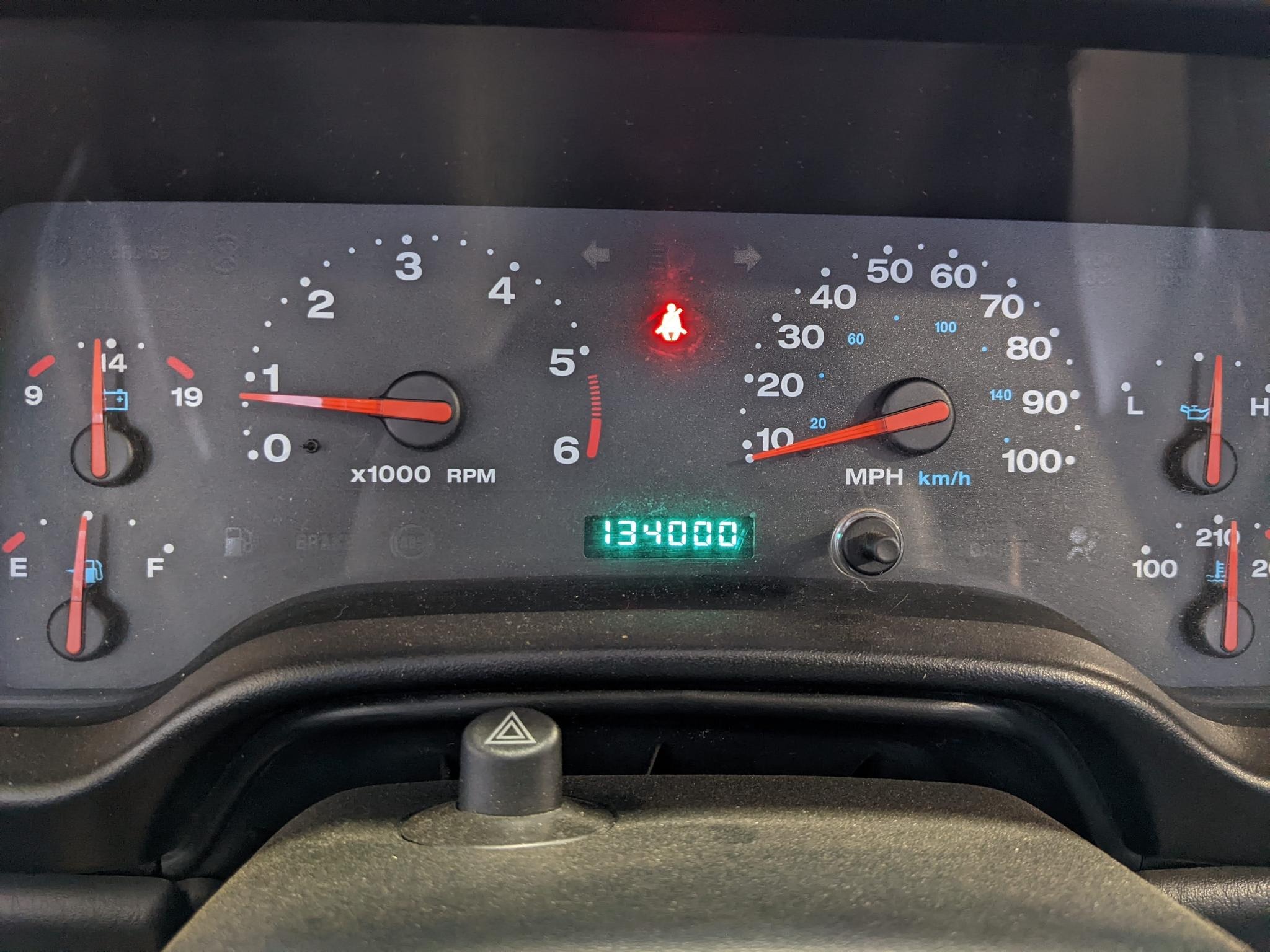

134,000mi2021-12-17

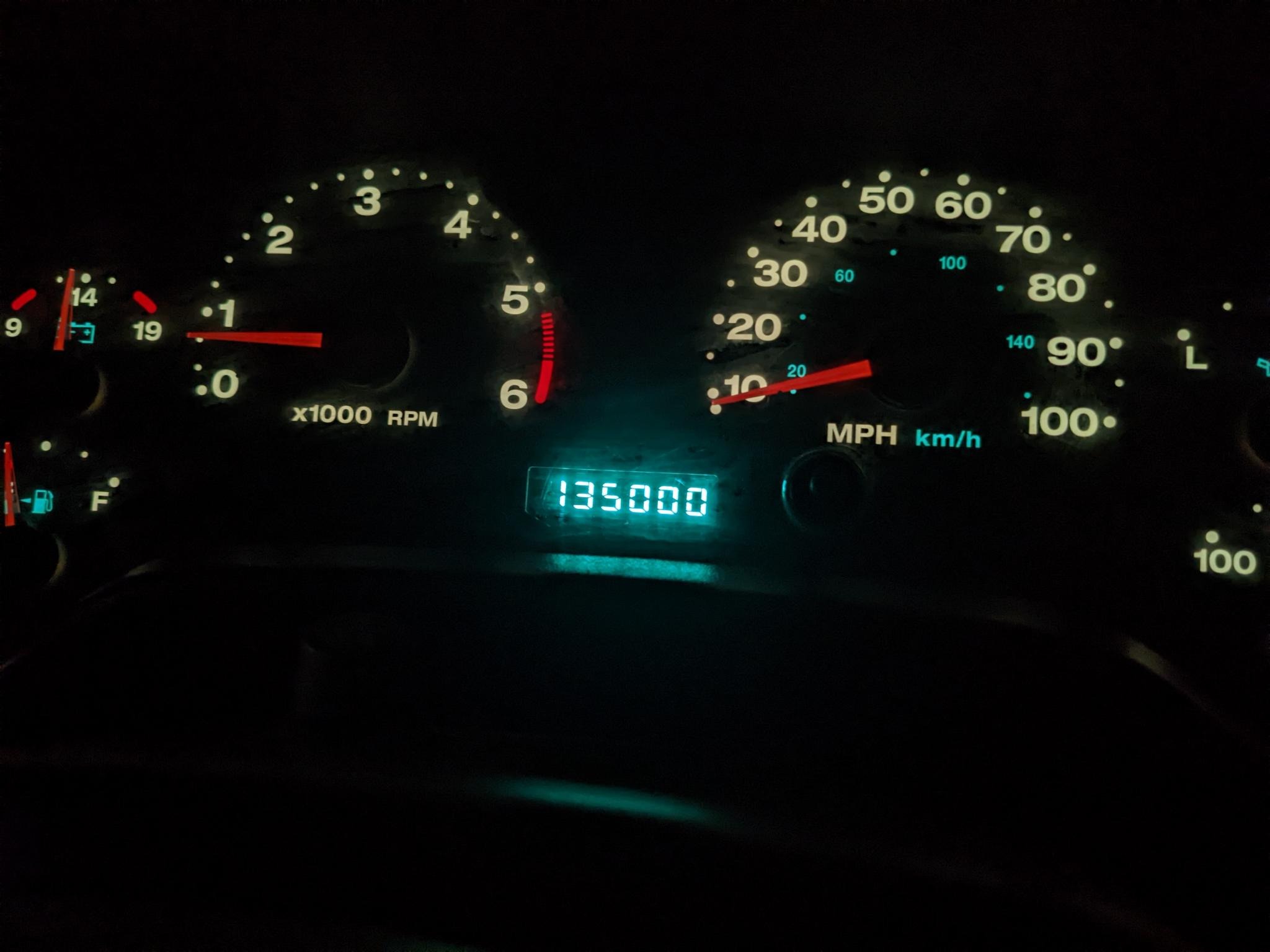

135,000mi2022-04-12

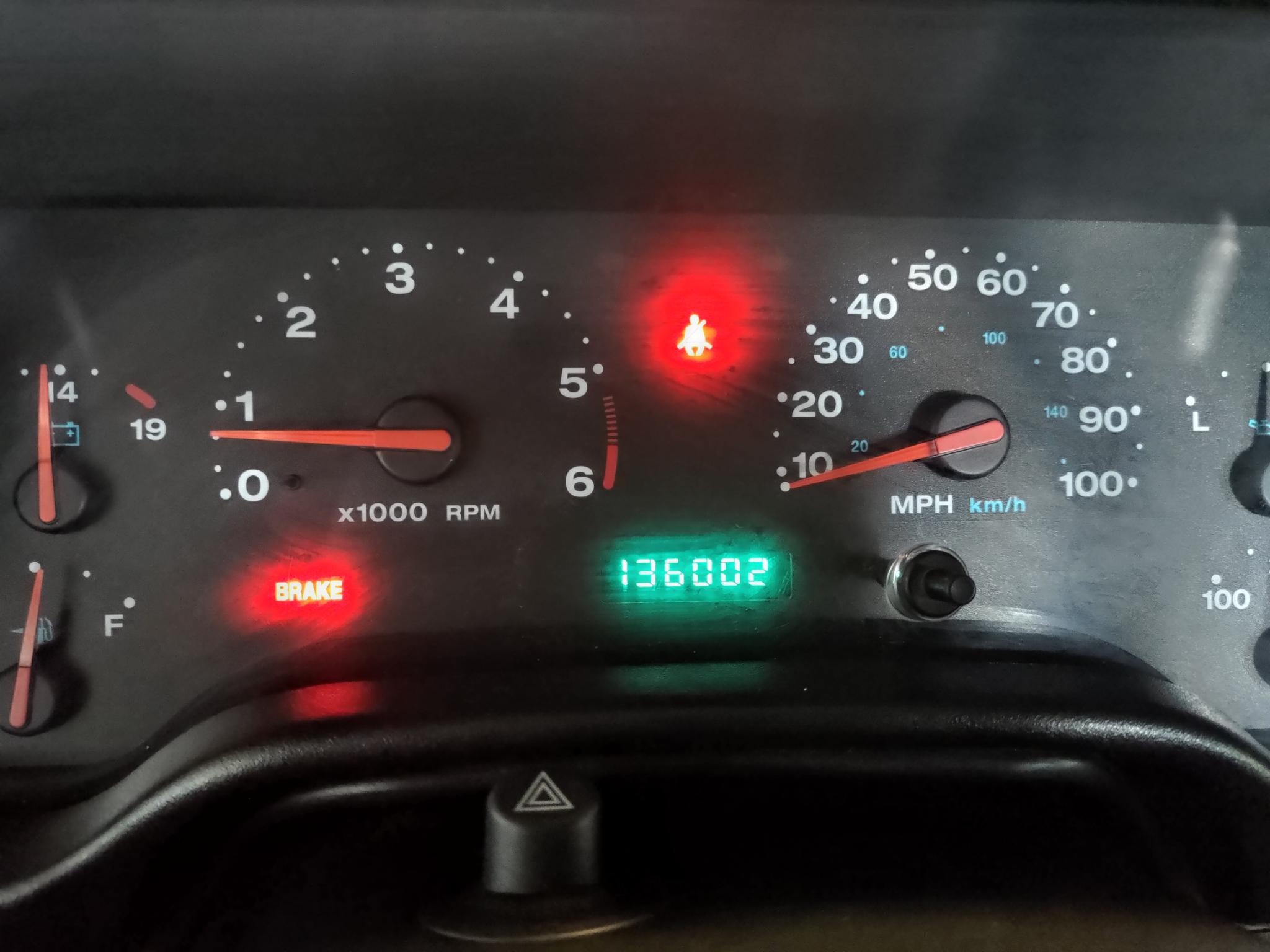

136,002mi2022-09-06

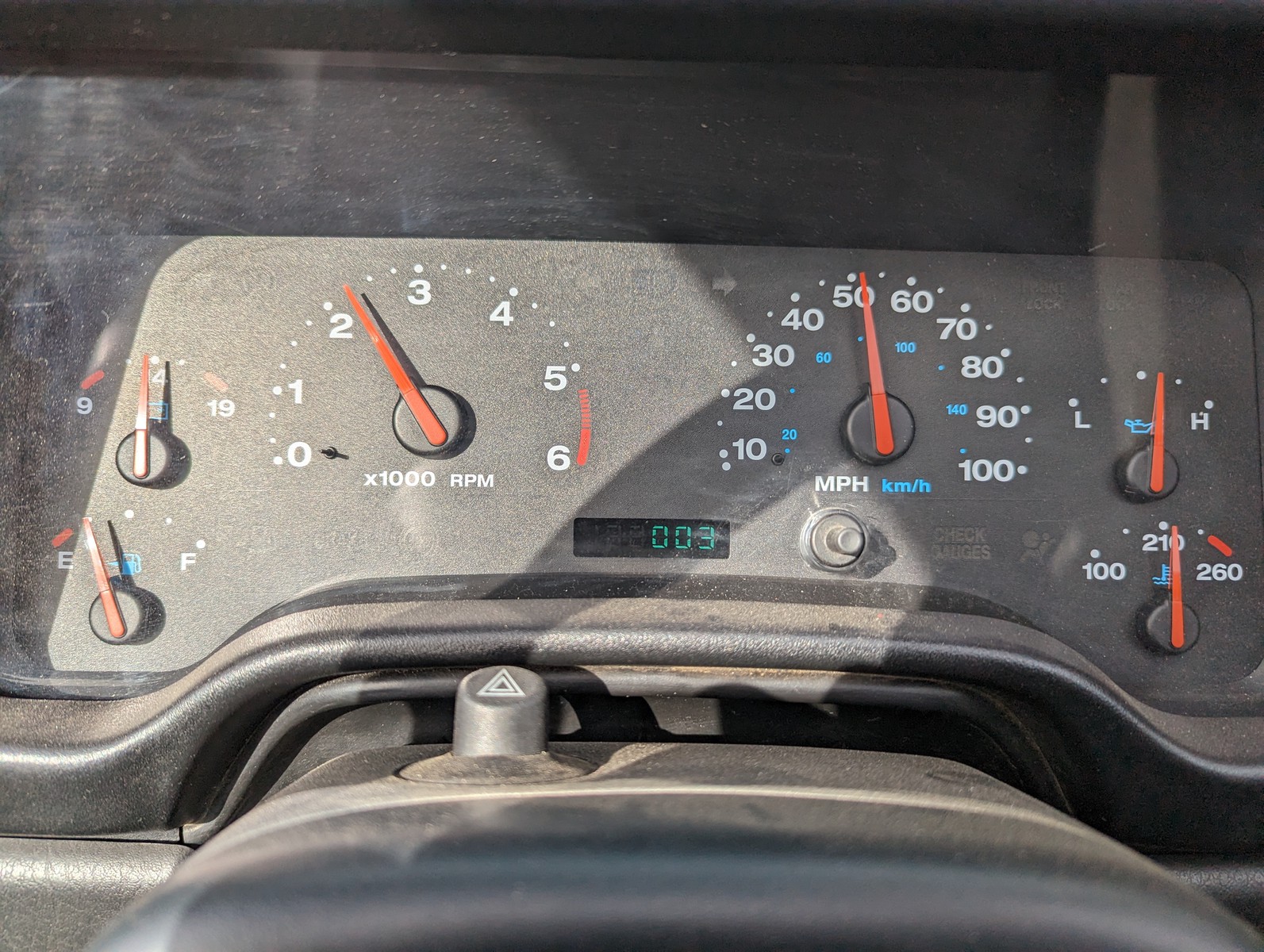

137,003mi2023-01-16

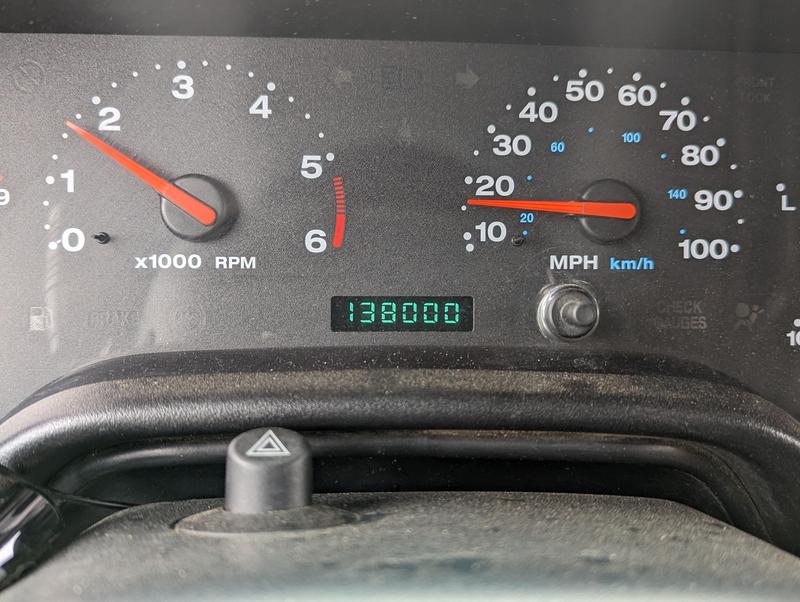

138,000mi2023-05-07

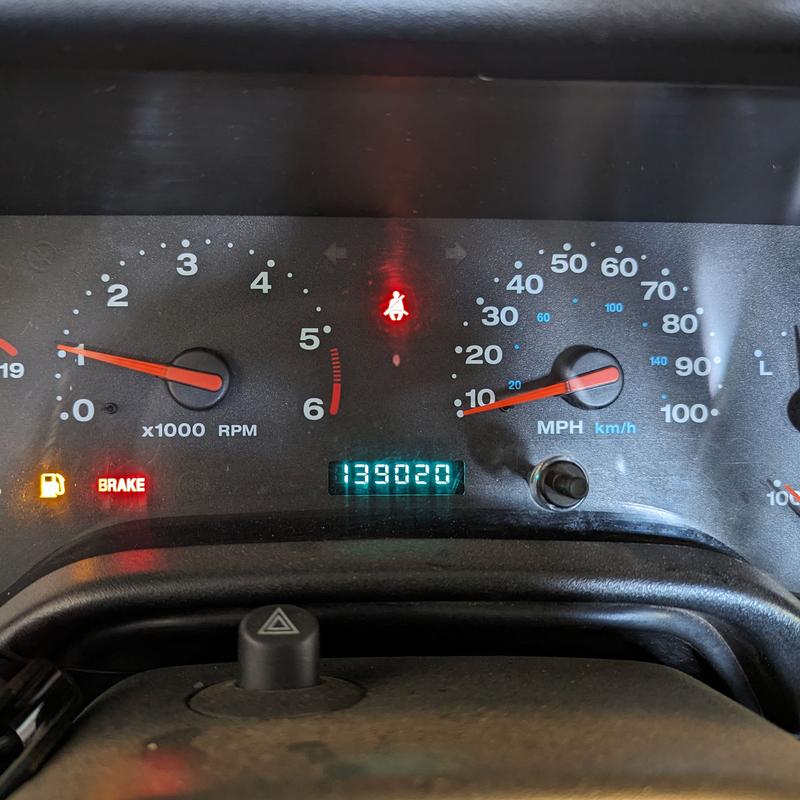

139,020mi2023-09-15

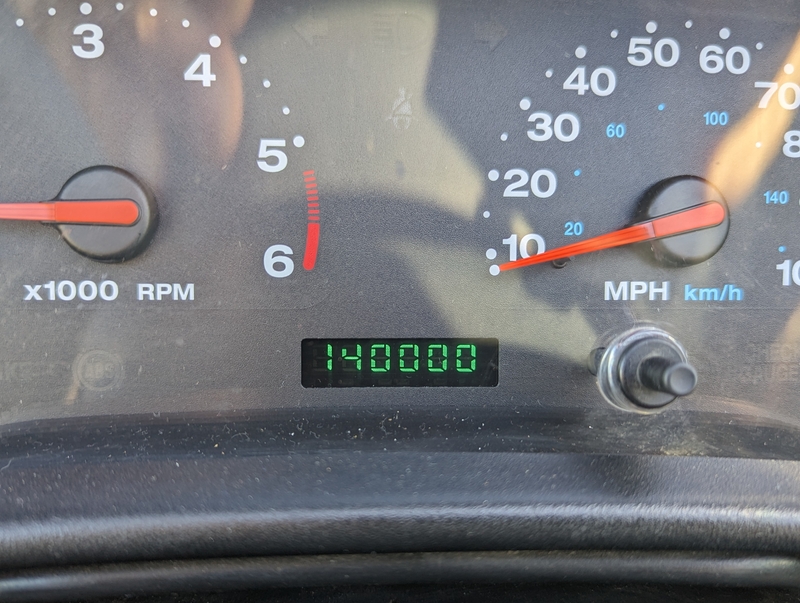

140,000mi2023-11-06

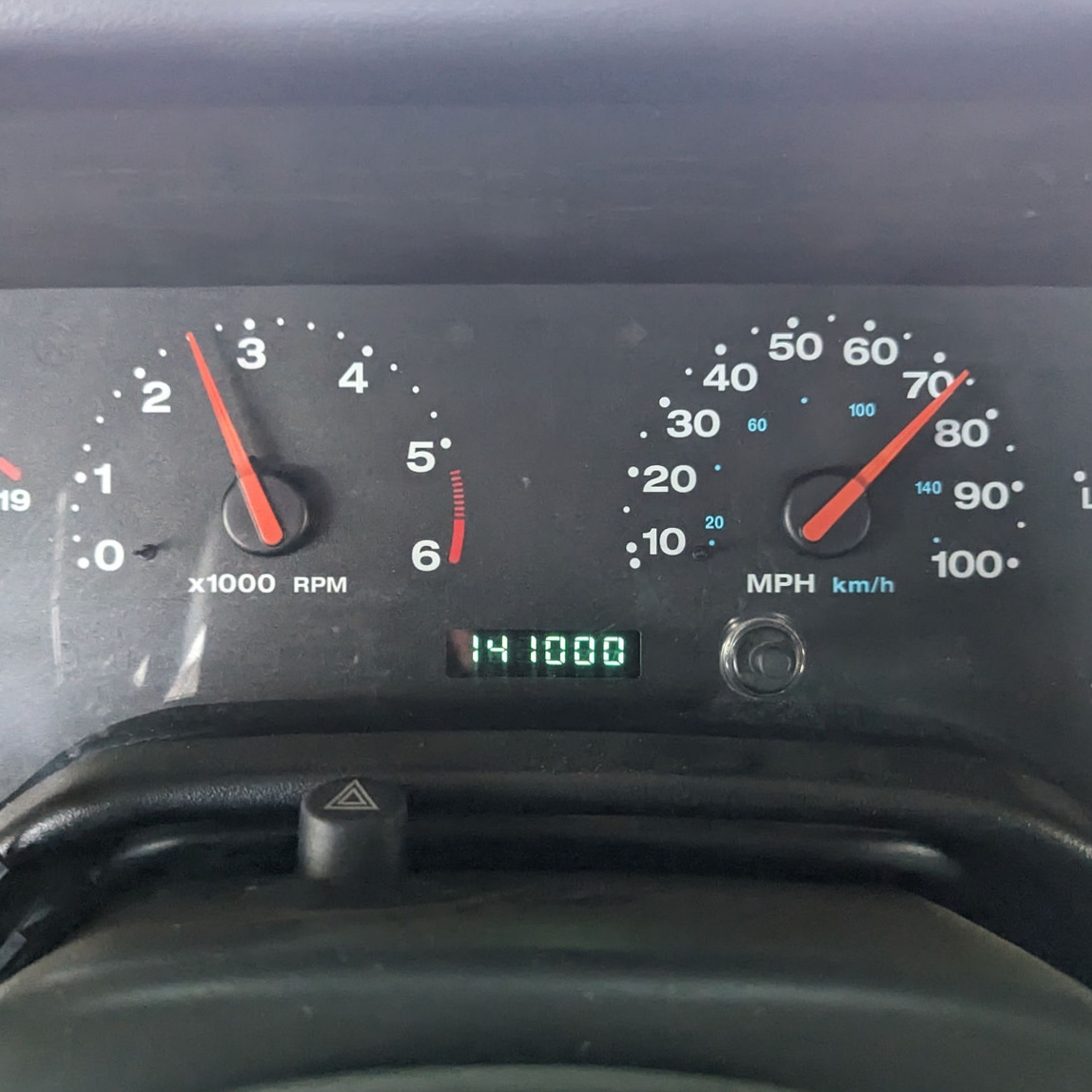

141,000mi2024-04-05

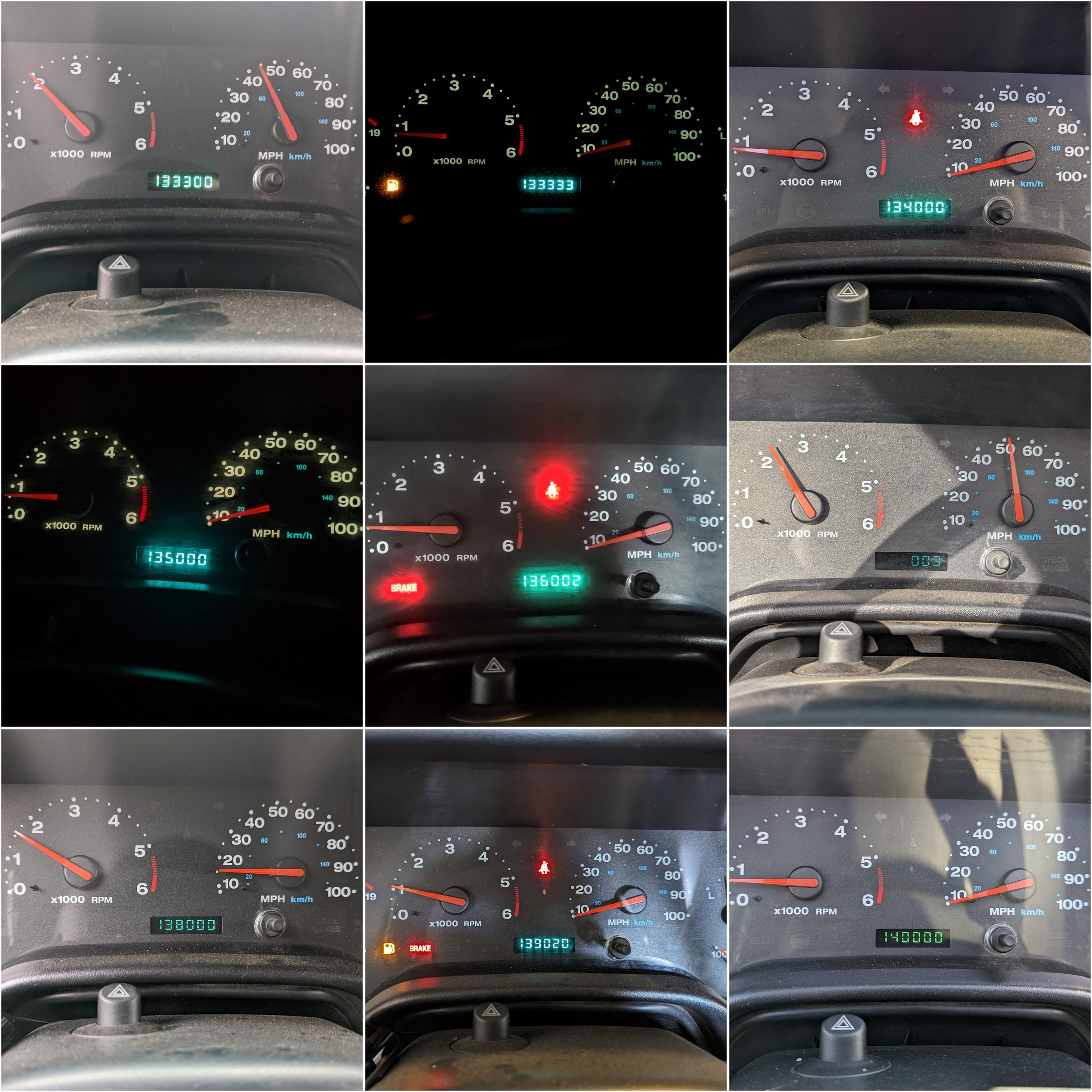

montage

Gas Milage

DateMiles (GPS)GallonsMPGOdo
2023-09-17205.716.0712.8
2023-09-30183.614.7612.4
2023-10-13170.214.4311.8
2023-10-14154.312.6312.2
2023-10-18193.815.6512.4
2023-10-28182.114.2612.8
2023-11-16209.715.5013.5140135
2023-12-08205.416.79812.2140331
2024-01-06196.715.97512.3140522
2024-02-13213.917.16912.5140729
2024-03-29199.815.59212.8140927
Total2115.2168.8312.5

replacement parts

DateMileagePartBrand/No.Retailer
2021-09-31133,308004spark plugsAUTOLITE APP985Rock Auto
2021-10-01133,322002seat risersebay
2021-10-18133,516009valve cover gasketFEL-PRO VS 50458
2021-10-18133,516009PCV ElbowDorman 47057autozone
2021-10-18133,516009PCV ElbowDorman 47079autozone
2021-10-21006hinge bushingsQuadratec Delrin
2021-10-25011headlightsToyota H4 kitToyota S.Atl
2021-10-28012gas skidMopar 52100219ABQuadratec
2021-10-28012gas tank strapOmix-Ada 17739.06Summit
2021-11-03016front bumperoemSean
2021-11-03016front speakersPolk DB522Amazon
2021-11-14020fog lightsKC Apollo Procraigslist
2021-11-16lug nutsMcGard 84563Quadratec
2021-11-22024diff sealLubelocker LLR-DO44 (rear)Quadratec
2021-11-30027control armssavvysavvy
2021-12-30027front track barRKJ-CE-9120TJSSummit
2021-12-30027rear track barJKS OGS151
2021-12-30027springsJKS 3"Northridge4x4
2021-12-30027Front shocksRancho RS55239 ​
2021-12-30027rear shocksRancho RS55241 (removed)
2021-12-30027rear shocksRancho RS55256 (removed) ​
2021-12-30027washersBMB JJ washers
2021-12-30027track bar bracketome (removed)
2021-12-30027track bar bracketJKS
2021-12-30027Rear Sway LinksZone ZONJ5200Northridge4x4
2021-12-30027Bump StopsRock Krawler RKKRK05611Northridge4x4
2021-12-30rear driveshafttom woodstom woods
2021-12-30hand throttleTeraflex
2022-01-15032reverse lightsclaytone ledsWTJF
2022-01-15032reverse sensor
2022-02-09035tirescooper evolution 285/75r16
2022-02-22038body liftsavvysavvy
2022-02-22038belly skidUCF extra clearance UCF012UCF
2022-02-22038mmljks 8100
2022-02-22038steering riserMOREMORE
2022-03-01tcase shiftersavvy 241 Cable ShifterAmazon
2022-03-20041rear tow pointCurt 22411Amazon
2022-05-06045subwooferGoldwood GW-S650/4Parts Express
2022-09-05135,972048axle ujointsSpicer 5-760xAmazon
2022-09-05135,972049brake shieldsOmix-AdaAmazon
2022-09-05135,972049unit bearings/hubsTimken HA597449Amazon
2022-09-05135,972049hub boltsSpicerEbay
2022-09-05135,972049spindle nutDorman 05101Amazon
2022-09-17136,125starterOreilly
2022-09-30136,292053Tie Rodzj tie rodAmazon
2022-10-01136,325053shock mount extRockJock CE-9601 (removed)Quadratec
2022-10-07136,392055air filterWix 46081AutoZone
2022-10-08136,400055rear shocksblack max B8528Summit Racing
2022-11-12055windshield wipersbosch microedge 40713Oreilly
2023-02-13056Front SpeakersKicker 47KSS504Crutchfield
2023-02-25137,200057Oil PanSpectra Premium CRP06CAutoZone
2023-02-25137,200057Oil Pan GasketFEL-PRO OS 34308Amazon
2023-03-07059Radio Head UnitKenwood KMM-X705Crutchfield
2023-03-100595-channel AmpSoundstream Picasso Nano 640.5DEbay
2023-04-24137,895063Sway DisconnectsZone Sway Discos J110911Extreme Terrain
2023-06-28067winch plateSmittybilt Winch Plate - 28024WheelParts
2023-06-28067winch solenoid500a Relayamazon
2023-06-28067front tow hooksCURT 22411amazon
2023-07-18069fairlead mountWRG ST HawseWRG
2023-09-23071winchWarn M8000 - refreshcraigslist
2023-10-09139,282073Water PumpMopar 5012366AF (68382492AA)Rock Auto
2023-10-09139,282073Radiator CapMopar 52027793 (55116901AA)Rock Auto
2023-10-09139,282073ThermostatMotorad 2000-195Rock Auto
2023-10-09139,282073Thermostat HousingMotorad CH5180Rock Auto
2023-10-09139,282073Upper HoseGates 23183Amazon
2023-10-09139,282073Lower HoseGates 22900Amazon
2023-10-09139,282073Fan ClutchUS Motor Works 22160Rock Auto
2023-10-09139,282073Timing ChainMopar 53020444Rock Auto
2023-10-09139,282073Crank SprocketMopar 53020443Rock Auto
2023-10-09139,282073Cam SprocketMopar 53010557AARock Auto
2023-10-09139,282073Timing Chain GuideCloyes 95337 (9-5337)Rock Auto
2023-10-09139,282073Timing Cover GasketFelPro TCS45458Rock Auto
2023-10-11139,321O2 SensorNTK 23137 B1S1Rock Auto
2023-10-11139,321O2 SensorNTK 23132 B1S2Rock Auto
2023-10-11139,321O2 SensorNTK 23135 B2S1Rock Auto
2023-10-11139,321O2 SensorNTK 23531 B2S2Rock Auto
2023-10-02139,961BatterySuper Start AGM Platinum Marine G34O’Reilly
